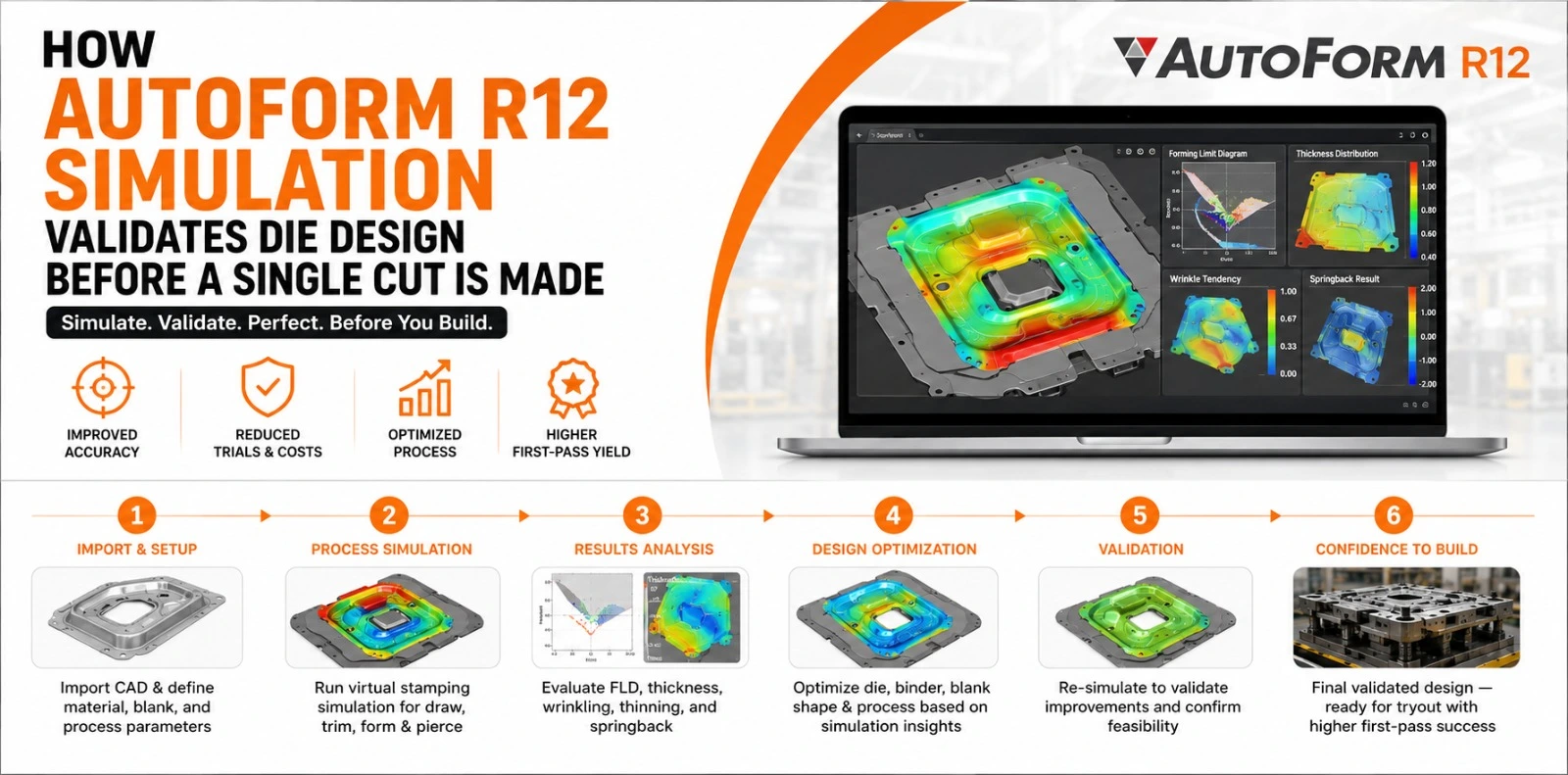

How AutoForm R12 Simulation Validates Die Design Before a Single Cut Is Made
In automotive die manufacturing, the most expensive mistake is building a die that does not work. Not because the machining was inaccurate or the assembly was poor — but because the die face geometry, the forming sequence, or the springback compensation was wrong before the first component was machined. Correcting those errors at tryout costs multiples of what correcting them in simulation costs. AutoForm R12 exists to catch them before steel is ever cut.
What AutoForm R12 Does
AutoForm R12 is the industry-leading forming simulation software used by automotive OEMs and die manufacturers worldwide. It uses finite element analysis (FEA) to digitally replicate the complete sheet metal forming process — draw, trim, flange, and restrike — predicting exactly how a blank will behave under real press conditions before any physical tooling exists.
At Dai-Ichi Tools, AutoForm R12 is used on every die programme as the engineering foundation for die face geometry decisions rather than as a downstream validation step.
What AutoForm R12 Validates Before Machining
Draw feasibility and thinning: AutoForm analyses the forming limit diagram (FLD) to identify splitting, excessive thinning, and wrinkling. Engineers resolve these issues by modifying die face geometry, draw beads, or blank shape before machining begins.
Springback prediction and die compensation: AutoForm predicts springback for AHSS materials and applies inverse compensation to the die geometry before machining, significantly reducing correction work during tryout.
Complete forming sequence validation: Every station including draw, pierce, trim, flange, cam, and restrike is simulated to ensure dimensional compliance throughout the complete manufacturing process.
Process window definition: AutoForm establishes the acceptable range for blank holder force, press speed, draw bead penetration, and material variation, providing production teams with validated setup parameters.
Transfer finger clearance verification: The transfer path is checked against all die components to eliminate collision risks before the transfer system is commissioned.
The Cost Case for Simulation
A typical AHSS transfer die programme without simulation often requires three to five tryout iterations. With AutoForm R12 simulation, only one to two iterations are generally needed. Each avoided tryout cycle can save ₹5–12 lakh in press time, engineering labour, and machining rework, while the simulation investment typically returns five to fifteen times its cost.
FAQs
Does AutoForm simulation guarantee first-time-right tryout? No. AutoForm greatly improves first-time-right performance, but physical validation is still required because real material behaviour and press conditions always introduce minor variation.
What simulation reports does Dai-Ichi Tools provide? Standard deliverables include thinning and FLD plots, springback deviation maps, compensation reports, process window documentation, and blank optimisation reports.
At what stage does simulation begin at Dai-Ichi Tools? Simulation begins during the feasibility stage before die face design starts, ensuring every design decision is based on validated forming analysis.
